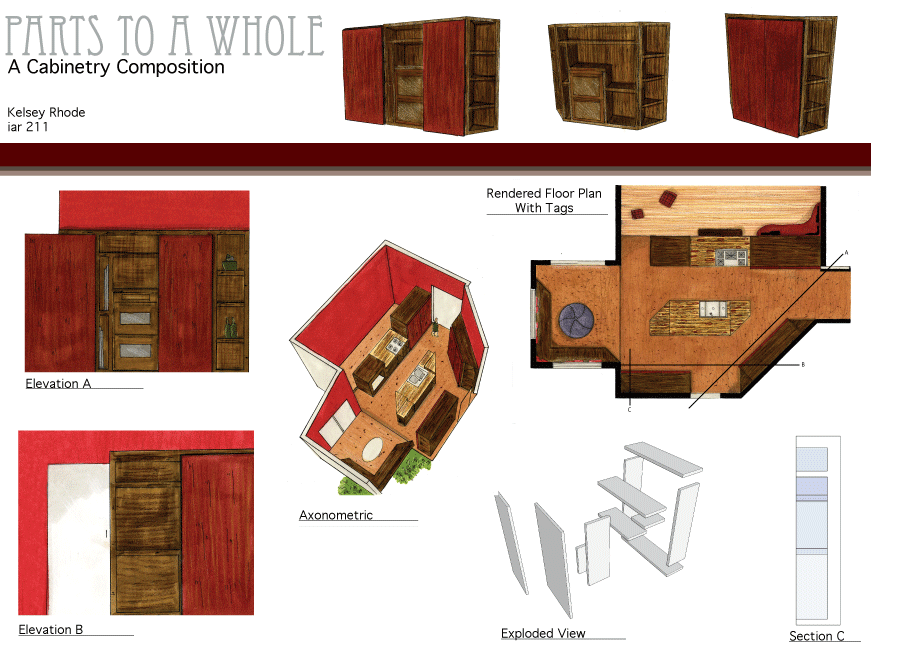

This is my final composition for visual communications 1. I compiled elevations, a floor plan, a section cut, an exploded view, and an axonometric together to create it. The section and the elevations have tags on the floor plan so it is easy to see where they are cut from. I decided to render some as well as keep some line drawings to add to the visual experience.
Tuesday, December 1, 2009
Parts To A Whole:Cabinetry Composition
This is my final composition for visual communications 1. I compiled elevations, a floor plan, a section cut, an exploded view, and an axonometric together to create it. The section and the elevations have tags on the floor plan so it is easy to see where they are cut from. I decided to render some as well as keep some line drawings to add to the visual experience.
